Split data sheets

Splits large sheets containing extensive datasets into multiple sheets if they exceed a specified row limit.

In each new sheet, the first row from the original sheet is added at the top as a header (assuming the first row contains the column headers).

(function () {

    let maximumRows = 4;  // Maximum number of rows per new sheet

    let worksheet = Api.GetActiveSheet();
    let rangeVal = worksheet.GetUsedRange().GetValue();
    let totalRows = rangeVal.length;
    let totalCols = rangeVal[0].length;

    // Copies the value and basic formatting from one cell to another
    function copyCellData(range, newCell) {
        let value = range.GetValue();
        let font = range.GetCharacters(0, 2).GetFont();

        newCell.SetValue(value || " ");
        newCell.SetFontName(font.GetName());
        newCell.SetFontSize(font.GetSize());
        newCell.AutoFit(false, true);

        if (font.GetBold()) newCell.SetBold(true);
        if (font.GetItalic()) newCell.SetItalic(true);
    }

    // Copies a range of rows from the source sheet to the new sheet
    function copyDataToNewSheet(startRow, endRow, newSheet, startNewRow) {
        for (let row = startRow; row < endRow; row++) {
            for (let col = 0; col < totalCols; col++) {
                let range = worksheet.GetRangeByNumber(row, col);
                let newCell = newSheet.GetRangeByNumber(row - startRow + startNewRow, col);
                copyCellData(range, newCell);
            }
        }
    }

    // Copies the header row (first row) to the top of a new sheet
    function copyHeaderToNewSheet(newSheet) {
        for (let col = 0; col < totalCols; col++) {
            let range = worksheet.GetRangeByNumber(0, col);
            let newCell = newSheet.GetRangeByNumber(0, col);
            copyCellData(range, newCell);
        }
    }

    // Splits the data into multiple sheets based on the maximum row limit and adds headers to each sheet except the first one
    function splitDataIntoSheets(maxRows) {
        let numSheets = Math.ceil(totalRows / maxRows); // Calculate the number of sheets needed
        let firstRowNewSheet = 0;

        for (let i = 0; i < numSheets; i++) {
            let newSheetName = "SheetNo_" + (i + 1);
            let newSheet = Api.AddSheet(newSheetName);
            newSheet = Api.GetSheet(newSheetName);

            let startRow = i * maxRows;
            let endRow = Math.min((i + 1) * maxRows, totalRows);

            if (i > 0) {
                // Add the header row only for sheets after the first one
                copyHeaderToNewSheet(newSheet);
                firstRowNewSheet = 1;
            }

            // Copy the appropriate slice of data into the new sheet
            copyDataToNewSheet(startRow, endRow, newSheet, firstRowNewSheet);
        }
    }

    splitDataIntoSheets(maximumRows);

})();

Methods used: GetActiveSheet, GetUsedRange, GetValue, GetCharacters, GetFont, SetValue, SetFontName, GetName, SetFontSize, GetSize, AutoFit, GetBold, SetBold, GetItalic, SetItalic, GetRangeByNumber, AddSheet, GetSheet

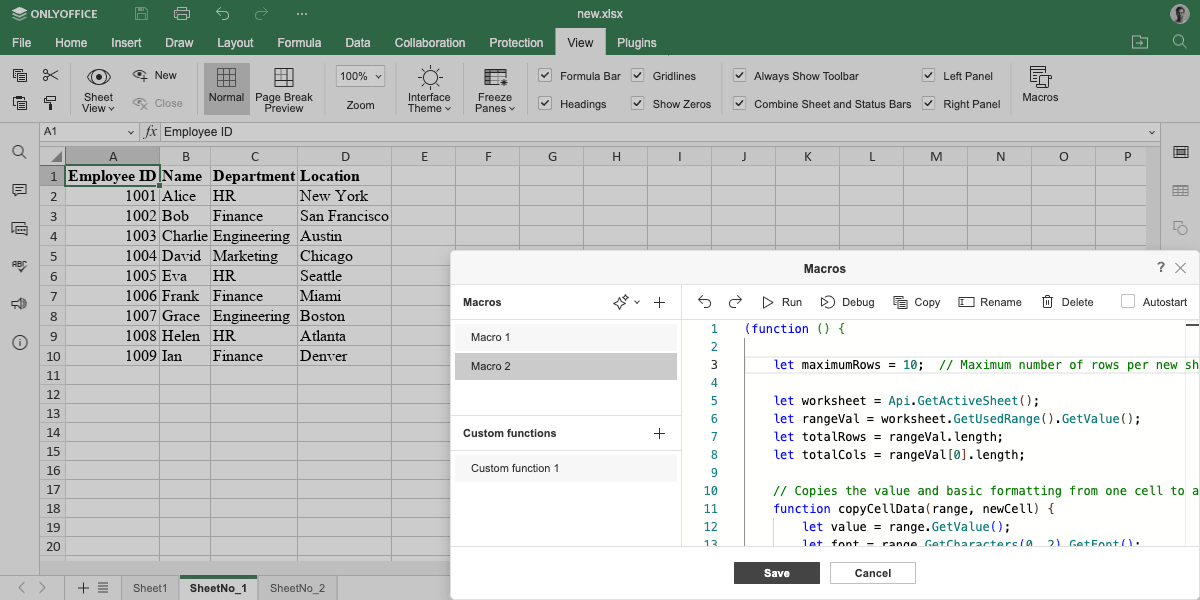

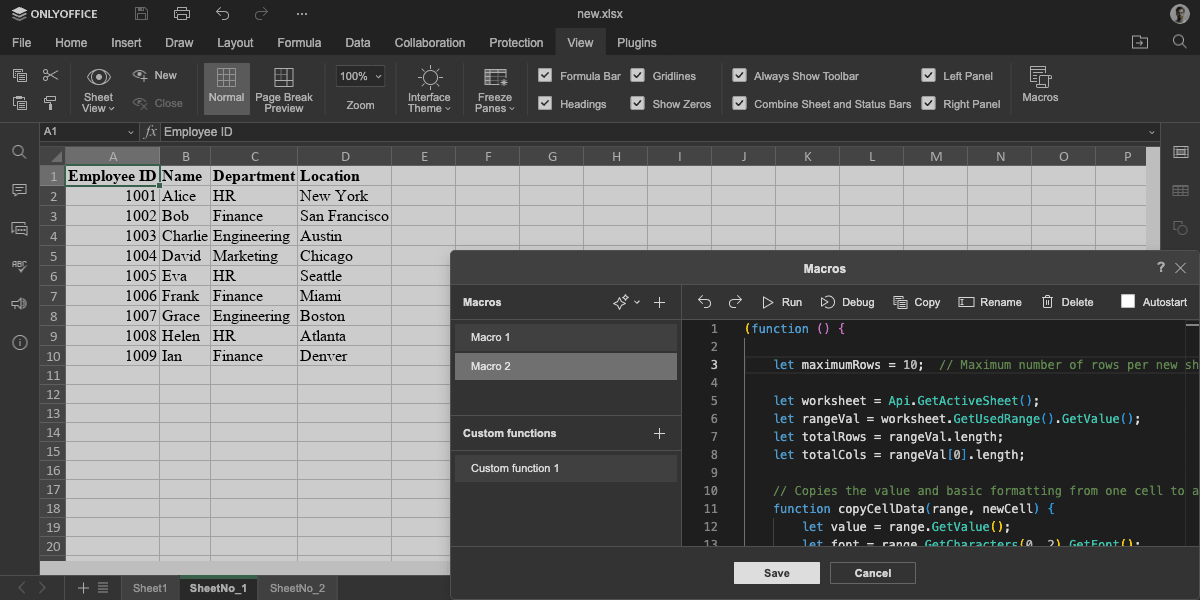

Result
